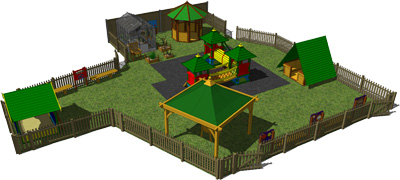

Primary School Play Area
An outdoor play situated within the grounds of a primary school.
The timber picket fence encloses an area which includes a central activity unit, with climbing elements, bridges and a slide, installed onto a rubber wetpour safety surface.
Other equipment provide opportunities for social interaction, imaginative play, quiet area, sand and water play, musical exploration and story telling.
-
Toddler Play Equipment
A simple illustration of one part of a range of play equipment for 2 - 5 year olds.
This range was designed for a leading manufacturer of play equipment, the style and manufacturing process employed complimented their existing range of equipment.
-

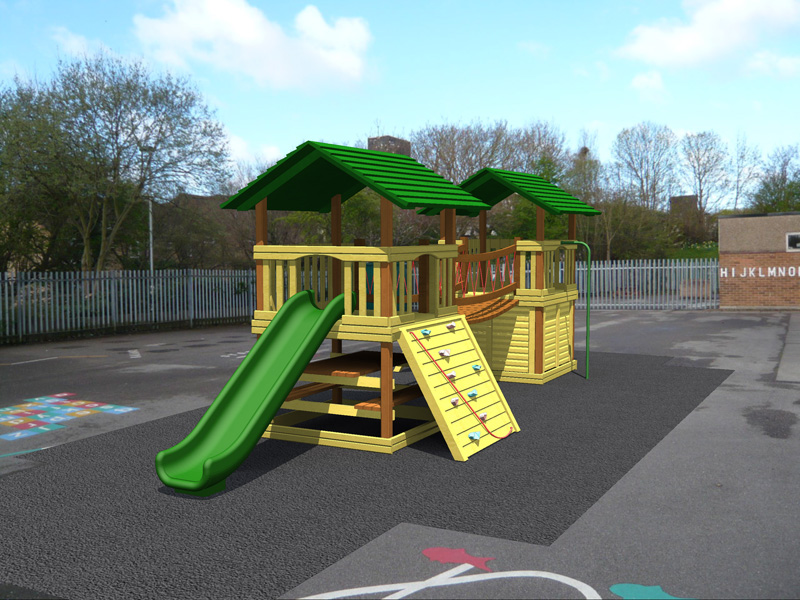

Customer Illustrations
We now have the capability to be able to illustrate play equipment directly into a photograph of the proposed area.
This give the customer a far better feel as to how their intended equipment will look once installed.
-
Children's Nursery Play Area
An area designed with a range of play equipment for pre-school children.
A rubber wetpour track then leads the children from the central tower around the area to access the other pieces of play equipment.
-

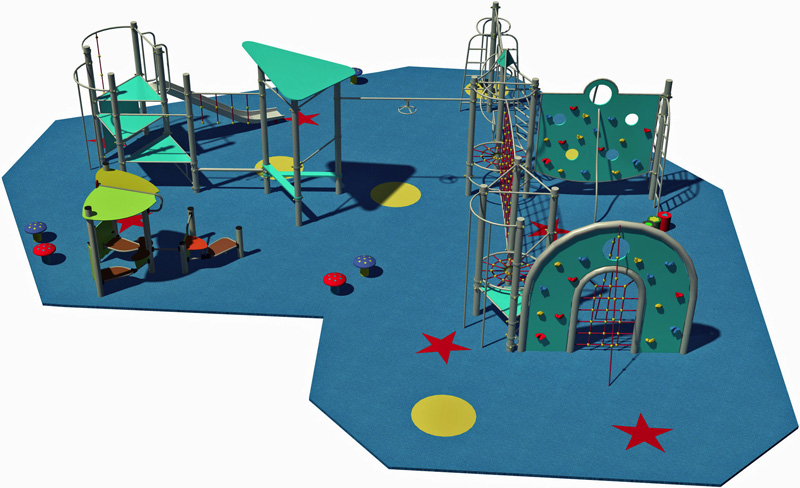

Recreation Ground Play Area
This illustration is part of a larger scheme designed for an unsupervised area within a recreation ground.
The whole area was designed to have dedicated areas specific for each age range, linked with pathways and enclosed with a steel bow top fence.
-

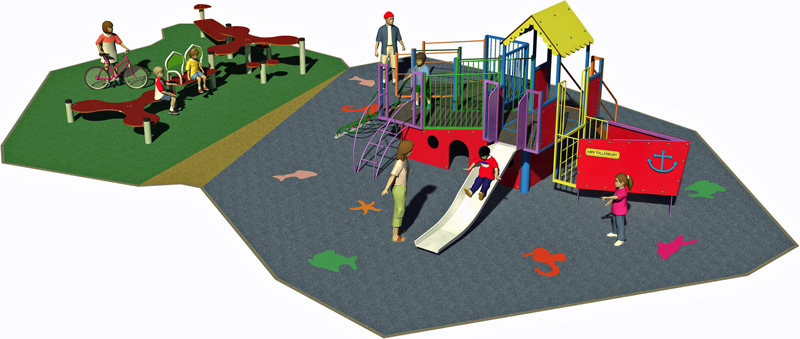

Themed Play Area
Themed play equipment and seating, the arrangement was designed to fit onto an existing safety surface area.
The addition of figures into the illustration give it life and scale.
3D model created using Google SketchUp V6.0 Pro and rendered with Artlantis Render V2.0.
-

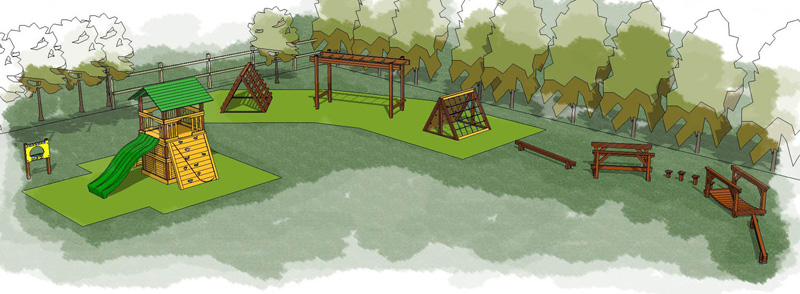

Illustration Style
Sometimes our clients want something a little more ʻsketchyʼ, a change of style for an illustration or even a complete new look.
We deliver to our clients what they want to show to their customers.
-

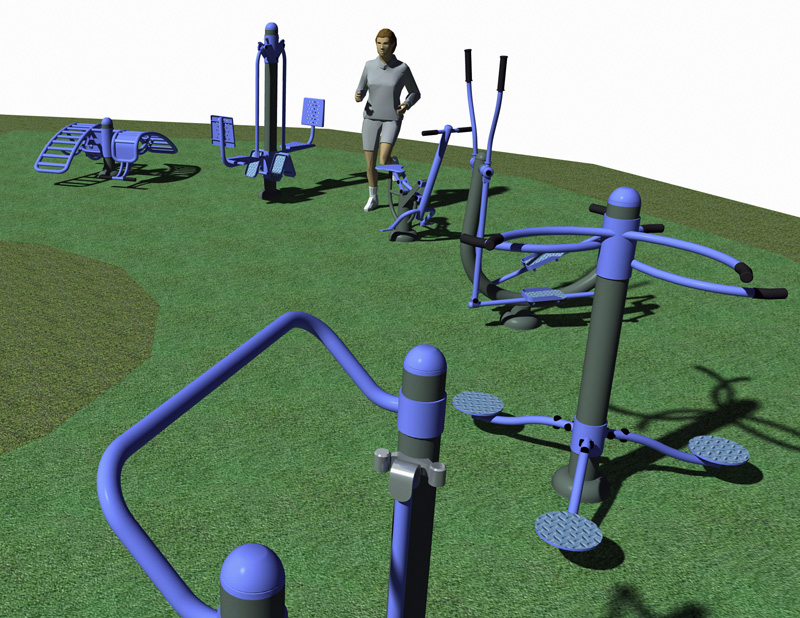

Outdoor Gym
Part of an illustration for an outdoor gym.
Our client specified which items of exercise were to be illustrated and that they wanted them in a circular arrangement.
-

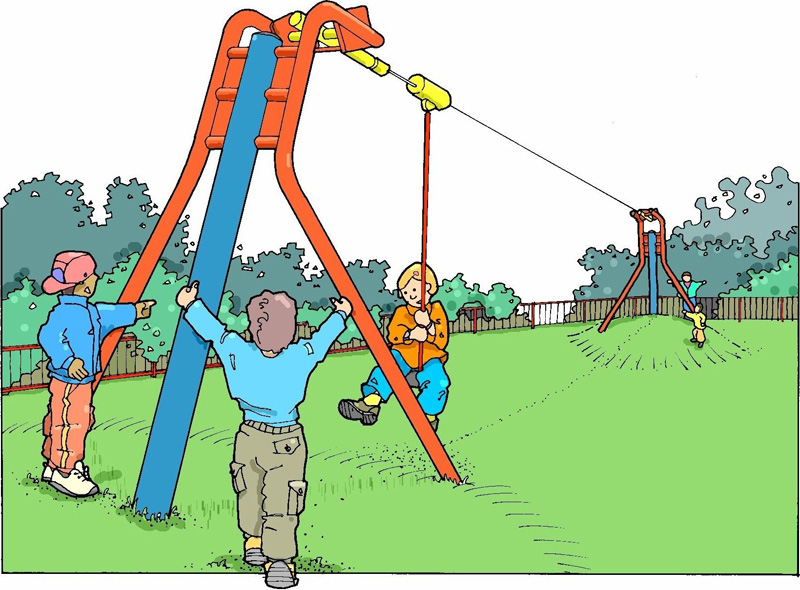

New Product
We were approached by a manufacturer of outdoor play equipment to develop their new design for an aerial runway into a more marketable product.
This is an early sketch in that development process, which illustrates the basic overall concept.
