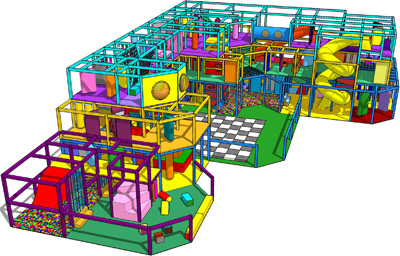

Puglia - Italy
A large indoor play area proposal for a Bariblu shopping mall in Southern Italy.
Covering an area of 21.6 x 15.6 x 5.4m high, this structure incorporates separate play areas for both toddlers and juniors.
Play equipment includes GRP slides, many soft play items, electronic interactive play panels and large ball pools.
3D model created using Google SketchUp V6.0 Pro.
-

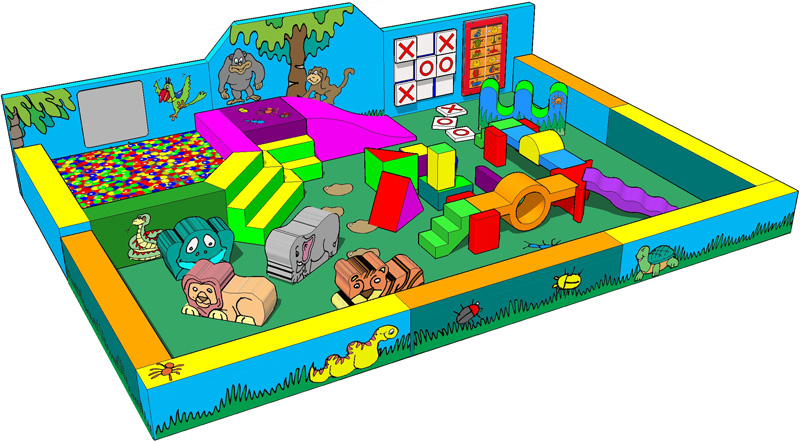

NAAFI Family Room
Proposed jungle themed soft play area to be installed in the family room on a UK military base.
This area includes soft play animals, artworked wall boards and a corner ball pool with steps and slide.
-
Soft Play Area
Small soft play area with fish theme artworked wall boards, soft play fish shapes,rockers and a corner ball pool with softplay steps and slide.
Parental seating block on two sides encloses the play area.
-

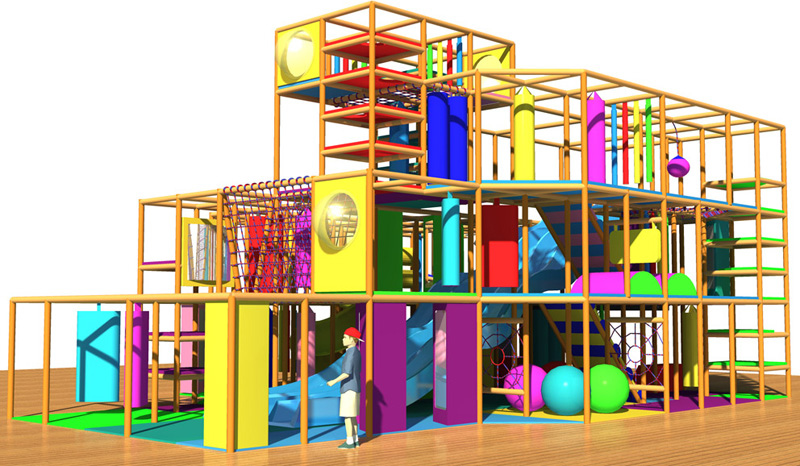

Hertfordshire - UK
A bespoke play area designed around a central four lane wave slide.
A padded steel frame with max dimensions of 13.2 x 9.6 x 6.7m high, creates a four level structure which incorporates soft play items, ramps, net bridges, GRP slides and a multitude of climbing activities.
-
Not all proposals are 3D
Not all proposals are illustrated in 3 dimensions, some clients just want a quick colourful plan layout.
-

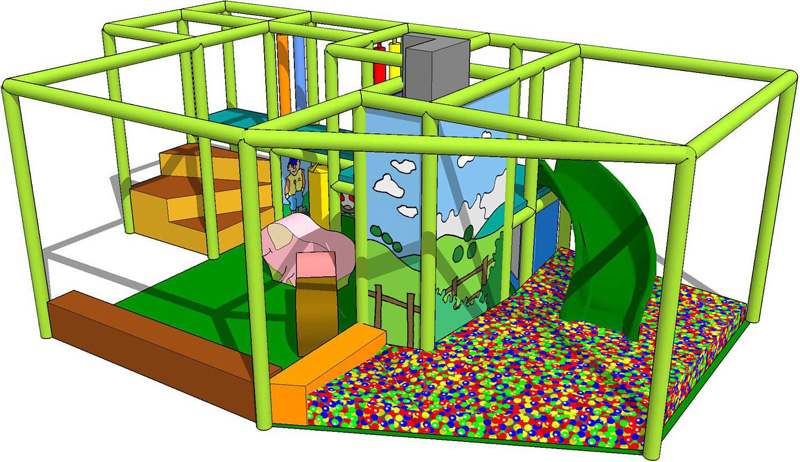

Small Nursery Structure
Not all bespoke indoor play areas are large, this one was designed for a small nursery and had to incorporate a building column at its centre.
The frame measures 5.5 x 4.3 x 2.2m high. Farm themed artworked panels cover the central column and soft play animals complete the theme.
-
Holiday Park - Ireland
A complex padded steel framed indoor play area with a maximum size of 13.0 x 7.2 x 5.6m high.
Included in the scheme is a sea themed toddler area with soft play boat and fish, a pirate themed junior area on three levels with a central four lane wave slide, a soft football area and a shooting gallery
-

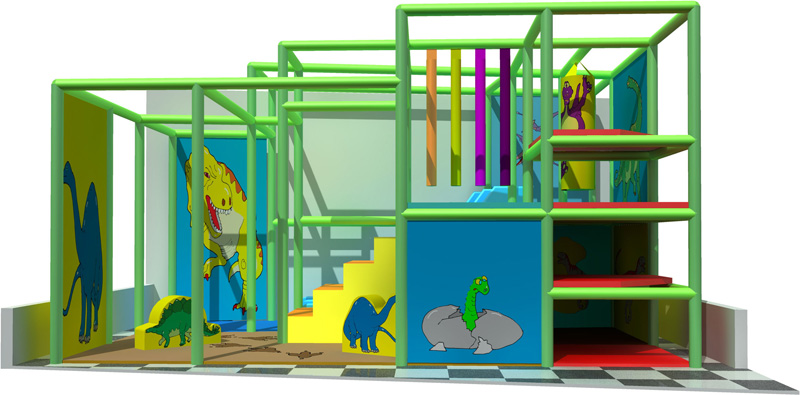

Theme Park - UK
Bespoke, dinosaur themed, play area for a Theme Park.
A simple structure designed to fit into an awkward corner of the clients main reception building.
Maximum size 5.3 x 4.0 x 2.4m high.
-
Soft Football Area
Proposed football area, maximum size 9.6 x 3.4 x 3.8m high, with two offset entrances, padded floor, goals and basketball hoops.
